2 Pin Circular Power Connector M16 300V Waterproof Male Female Wire Connector
Description of Industrial Waterproof Circular Connector
-
2 Pin Core Specifications and Connection Mode: Adopts a 2 Pin male-to-female plug-in design, focusing on the cable-to-cable connection mode, suitable for 300V rated voltage scenarios, and can stably meet the power transmission needs of small and medium-power equipment; it follows the M16 interface standard, with a compact circular structure, accurate pin alignment, smooth plugging and small connection gap, ensuring the stability of power transmission.
-
Professional Waterproof Sealing Performance: Equipped with a high-standard waterproof structure, the connection between the circular shell and the cable adopts an integrated sealing process with a custom waterproof rubber ring, which can effectively resist erosion from rainwater, sand, oil stains and humid environments. It is suitable for outdoor open-air operations or complex working scenarios with high moisture and dust, greatly reducing the risk of short circuits, poor contact and other faults caused by environmental factors.
-
Exclusive Advantages of Cable-To-Cable Connection: Tailor-made for cable-to-cable connection scenarios, the male and female plugs are firmly fixed to the cable without loose hidden dangers, and can resist slight pulling and vibration during equipment operation or movement; no complex installation tools are required, and on-site plug-in operation is convenient and efficient, adapting to high-frequency operation needs such as temporary equipment docking, later maintenance and cable extension.
-
300V Adaptive Materials and Safety Performance: The conductor is made of high-conductivity oxygen-free copper, and the surface is anti-oxidation tinned, which can effectively reduce heat generation and loss under 300V voltage transmission, ensuring efficient power transmission; the shell is made of high-insulation grade engineering plastic, which has excellent aging resistance and impact resistance, and can isolate electromagnetic interference, eliminating potential safety hazards such as electric leakage and power leakage, complying with industrial safe operation standards.
-
Diversified Scenario Adaptation Range: Widely used in scenarios requiring cable-to-cable power connections such as industrial control equipment, security monitoring systems, smart home appliances, new energy auxiliary equipment, and instruments and meters; it is especially suitable for small and medium-power equipment that requires connection convenience and waterproof performance, such as outdoor sensors, portable instruments, small automation components, etc., providing reliable connection support for stable equipment operation.
Main Feature
- Push lock quick easy release system

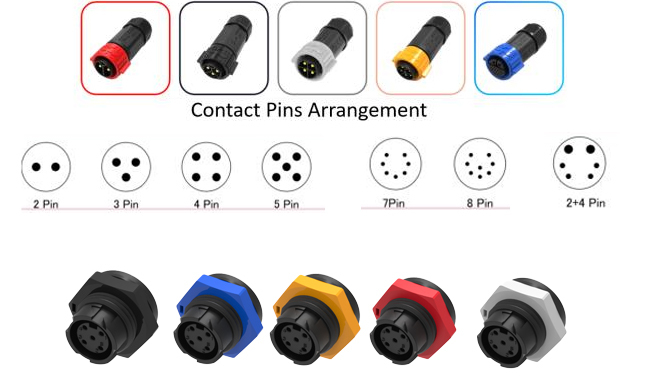

- Multi-core can be choosen: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
- Field-installable variants: both wire-to-wire and wire-to-board configurations
- High-current-rated waterproof connector: an ideal solution for prolonged operation up to 10A
- Cable assembly services provided – customization is welcome
- OEM/ODM partnerships are warmly accepted
| Electrical Parameters |
| Number of Poles |
2Pin waterproof connector |
| Current Rating |
10A max |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Application industries
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Production Dimension
More Technical Details
FAQ
Q1:How can I get samples?
A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.
Q2:Are your products certified? What certifications do you have?
A2: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3:What shipping methods do you offer? How long is the delivery time?
A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
